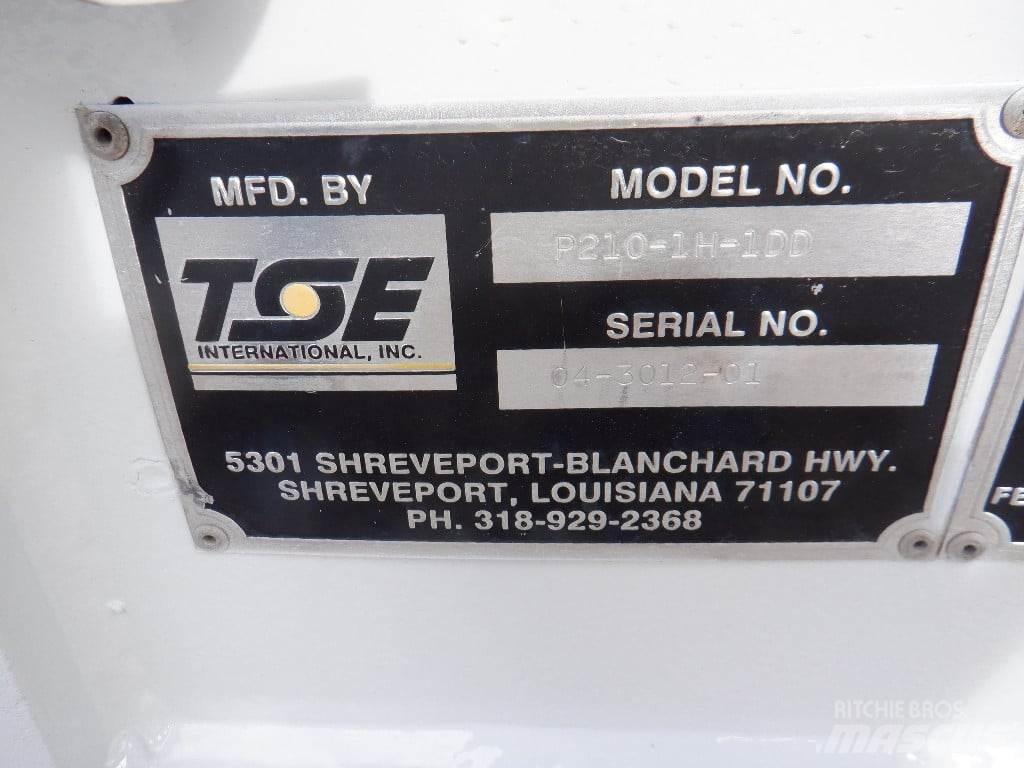

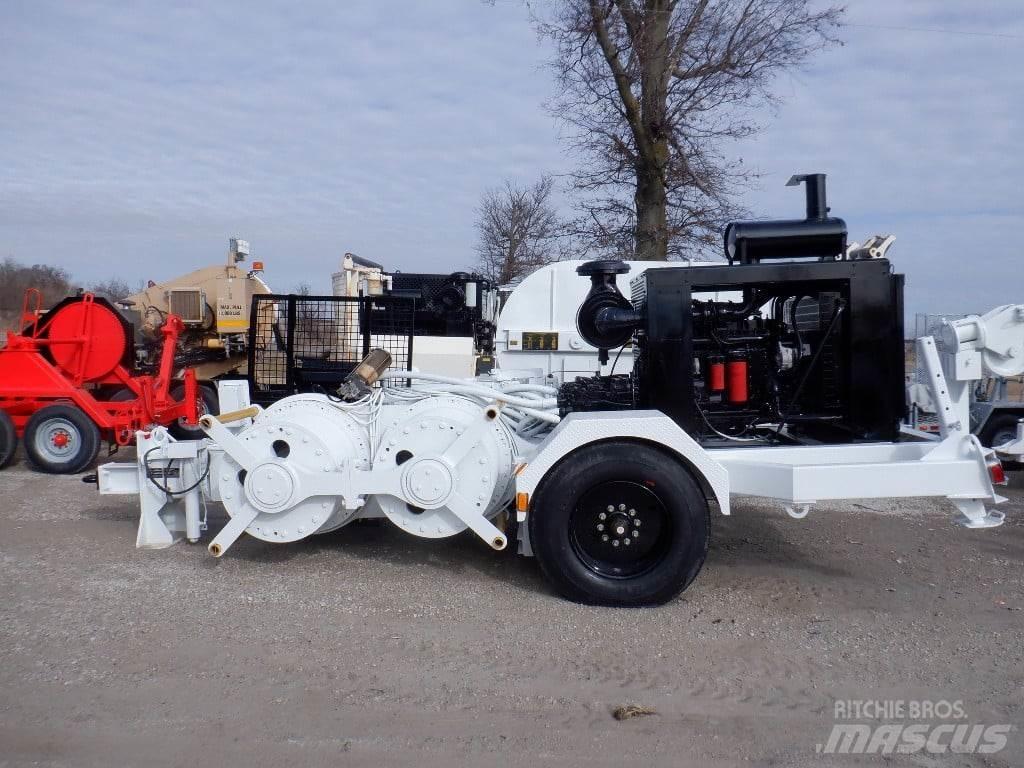

TSE P210-1H-1DD

Maximum Linepull 1 x 21000 daN (46,242 lbs). Maximum Linespeed 5 km/hr (3.1 mph). Tensioner Bull Wheel Specifications. Bullwheel diameter 762 mm (30”). Maximum rope diameter 30mm (1.2”). 5 grooves per bullwheel set. Maximum conductor diameter 43 mm (1.7”). Engine Specifications. Water-cooled diesel engine 194.0 kW (260 hp). 12V electric system. Mechanical Drive Specifications. Bull wheels driven by fully enclosed planetary gearbox drive. Infinite variable speed, linepull control. Automatic over-pull protection system with linepull gauge. Heavy duty hydraulic oil cooler. Replaceable hydraulic oil filters complete with visual dirt alarms. Safety Features, Spring applied / hydraulic pressure released brakes on bullwheel drives apply automatically in the event of hydraulic circuit pressure loss or engine shutdown. Overpull protection to set maximum linepull. Physical Dimensions. Weight (Approx.) 6,805 kg (14,990 lbs). Length (Approx.) 4800 mm (189”). Width (Approx.) 2235 mm (88”). Height (Approx.) 2870 mm (113”).
