CAT 315

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

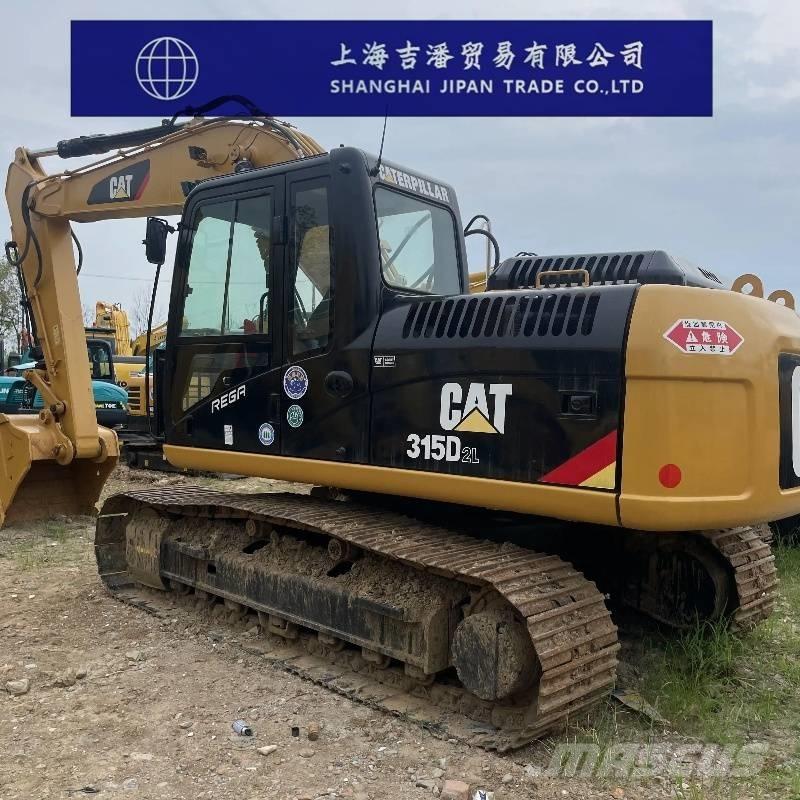

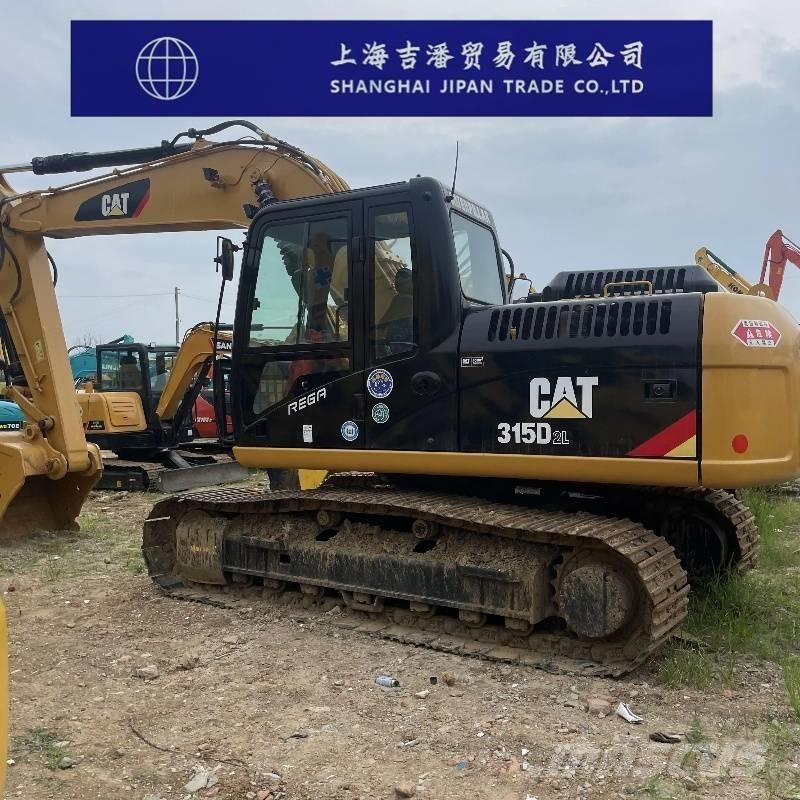

Caterpillar 315DL Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 17280 Bucket capacity (m³) 0.61 Boom length (mm) 5100 Stick length (mm) 2250 Tonnage (tons) 15 Bucket backhoe Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Grounding specific pressure (Kpa) 40.7 Slewing speed (rpm) 10.2 Travel speed (km/h) 5.6 dynamical system Engine model Caterpillar CAT C4.2 ACERT Rated power (kw/rpm) 91 Displacement (L) 4.3 Number of cylinders (units) 4 Hydraulic system Main overflow set pressure (Mpa) 35 The maximum flow rate of the main pump (l/min) is 150 Traveling hydraulic motor type 35 Slewing hydraulic motor type 22.5 Pilot oil circuit (MPa) 4.12 Boom cylinder - number × bore × stroke (mm) 2-110×1193 Bucket Cylinder - Number of Pieces× Bore × Stroke (mm) 1-120×1331 Bucket cylinder - number × bore × stroke (mm) 1-100×1048 Oil capacity Fuel tank (L) 300 Hydraulic Tank (L) 106 Hydraulic System (L) 190 Engine oil change (L) 17.5 Coolant (L) 22 Body size Total length of transport (mm) 8520 Total Transport Width (mm) 2590 Total height of transport (mm) 2930 The overall height of the cab (mm) is 2870 Counterweight ground clearance (mm) 1030 Track grounding length (mm) 3170 Track shoe width (mm) 600 Total track width (mm) 2590 Track gauge (mm) 1990 Minimum ground clearance (mm) 460 Scope of work The maximum excavation radius of the stopping surface (mm) is 8430 Maximum digging depth (mm) 5720 Maximum digging height (mm) 8740 Maximum unloading height (mm) 6140 Maximum vertical digging depth (mm) 4920
