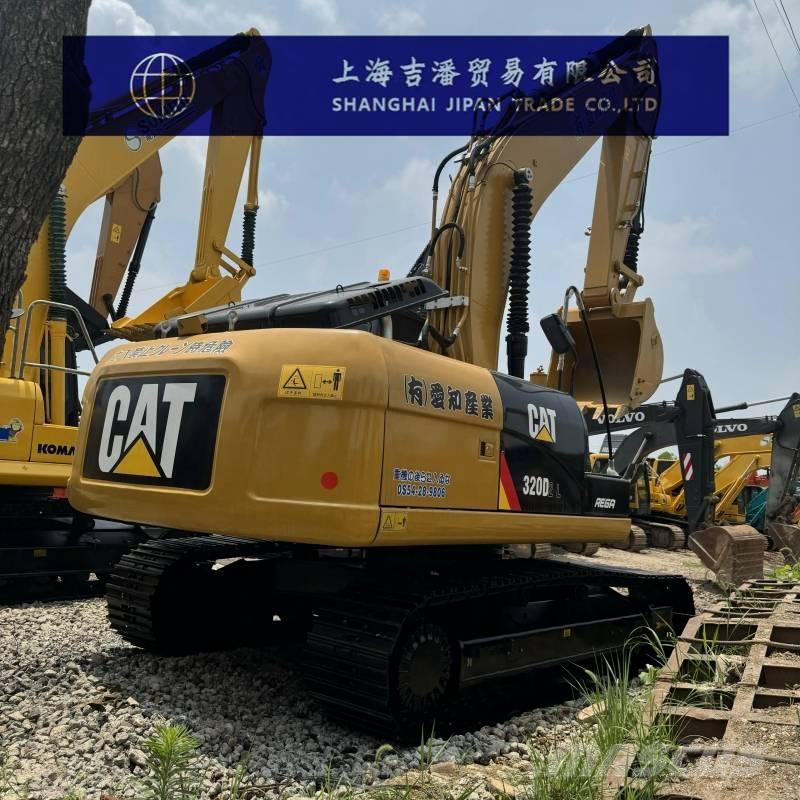

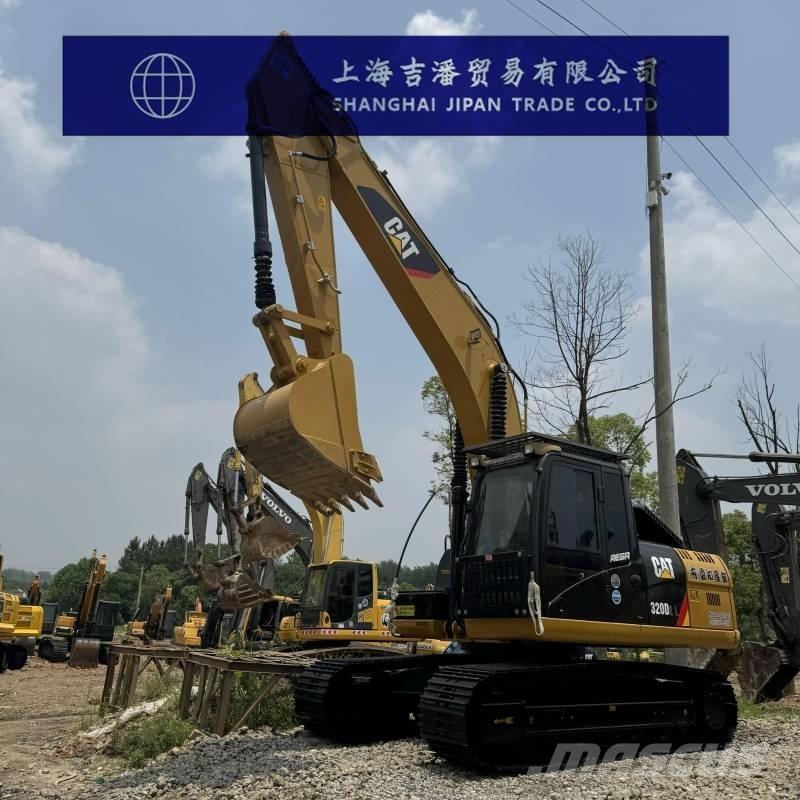

CAT 320 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Engine Parameter Details Engine Model Cat 3066 TA / Cat C6.4 ACERT™ Number of Cylinders 6 Displacement 6.37 L (389 cu in) Bore × Stroke 102 mm × 130 mm (4.1 in × 5.2 in) Net Power (ISO 9249) 103 kW (138 hp) @ 1800 rpm Flywheel Power 103 kW (138 hp) Aspiration Turbocharged and aftercooled Emission Standards US EPA Tier 2 + EU Stage II Weights Parameter Details Operating Weight (Standard Undercarriage) 20330 kg (44820 lb) Operating Weight (Long Undercarriage) 21570 kg (47554 lb) Counterweight 3860 kg (8510 lb) Dimensions Parameter Details Transport Length 9440 mm (371.7 in) Transport Width 3180 mm (125.2 in) Shipping Height 3440 mm (135.4 in) Track Gauge 2200 mm (86.6 in) Ground Clearance 450 mm (17.7 in) Counterweight Clearance 1020 mm (40.2 in) Tail Swing Radius 2750 mm (108.3 in) Swing Mechanism Parameter Details Swing Speed 11.5 rpm Swing Torque 61.8 kN·m (45612 lb·ft) Swing Brake Automatic swing parking brake Drivetrain Parameter Details Maximum Travel Speed 5.7 km/h (3.5 mph) Maximum Drawbar Pull 206 kN (46311 lb) Track Shoes (Standard) 600 mm (24 in) Number of Track Rollers (Standard Undercarriage, per side) 7 Hydraulic System Parameter Details Hydraulic System Type Fully pressurized hydraulics with cross - sensing system Main Implement System Maximum Flow (2 ×) 205 L/min (54 gal/min) Maximum Pressure (Equipment & Travel) 35000 kPa (5076 psi) Maximum Pressure (Swing) 25000 kPa (3626 psi) Pilot System Maximum Flow 32.4 L/min (9 gal/min) Pilot System Maximum Pressure 3900 kPa (566 psi) Boom Cylinder (Bore × Stroke) 120 mm × 1260 mm (4.7 in × 49.6 in) Stick Cylinder (Bore × Stroke) 140 mm × 1504 mm (5.5 in × 59.2 in) Bucket Cylinder (Bore × Stroke) 120 mm × 1104 mm (4.7 in × 43.5 in) Service Refill Capacities Parameter Details Fuel Tank Capacity 410 L (108.4 gal) Hydraulic System Capacity (Including Tank) 260 L (69 gal) Hydraulic Tank Capacity 120 L (32 gal) Engine Oil Capacity 22 - 30 L (5.8 - 8 gal) Cooling System Capacity 25 - 29 L (6.6 - 7.7 gal) Final Drive Capacity (Per Side) 8 L (2.1 gal)
