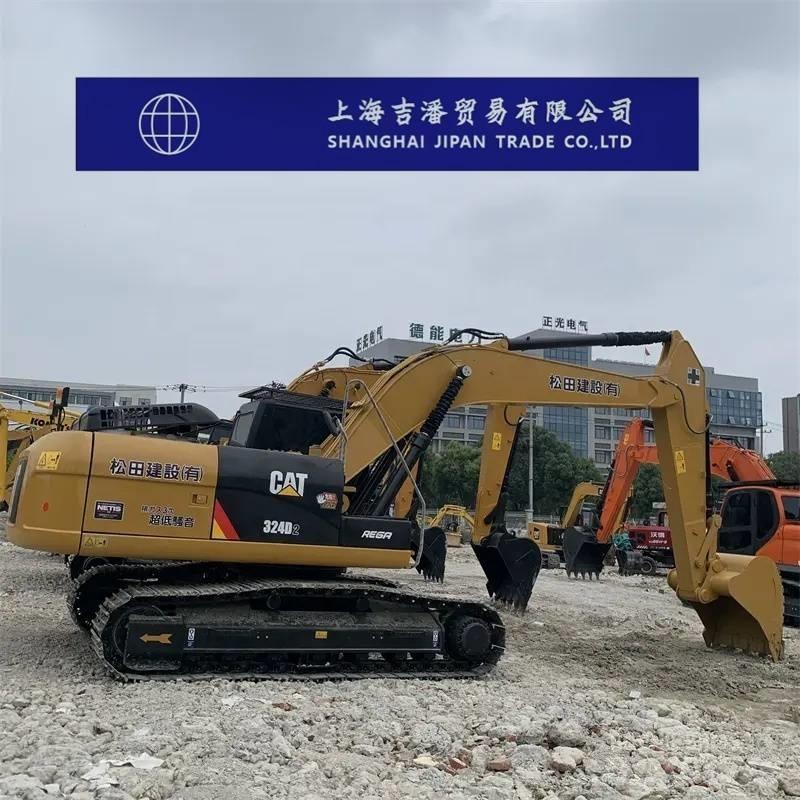

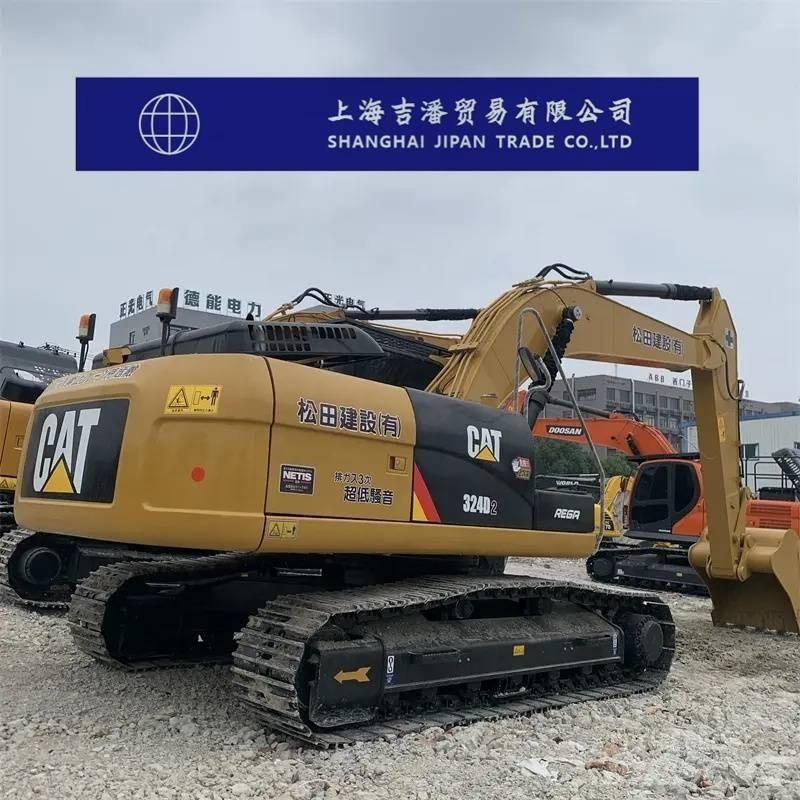

CAT 324 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification The working weight of the entire machine (kg) is 24240 Bucket capacity (m³)1 Boom length (mm) : 5900 The length of the bucket pole (mm) is 2950 Origin: Japan Tonnage (tons) : 24 Power, traditional power Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Rotational speed (rpm)9.6 Walking speed (km/h) : 3.5/5.5 Climbing ability (%)70/35° Power system Engine model C7 ACERT Rated power (kw/rpm)140/2000 Displacement (L)7.2 Number of cylinders (units)6 Bore × stroke (mm) : 102×130 The cooling method is water cooling Hydraulic system The main overflow set pressure (Mpa) is 35 The maximum flow rate of the main pump (l/min) is 235 Working hydraulic oil circuit (Mpa)35 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)24.5 Pilot oil circuit (MPa)3.9 Boom cylinder - Number × cylinder bore × stroke (mm)2-135×1305 Bucket rod cylinder - Number × cylinder bore × stroke (mm)1-140×1660 Bucket cylinder - Number × cylinder diameter × Stroke (mm)1-120×1104 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)520 Hydraulic oil tank (L)145 Hydraulic System (L)300(including the oil tank) Engine oil change volume (L)30 Coolant (L)30 Main body size Total transportation length (mm)10060 Total transportation width (mm) : 2990 Total transportation height (mm)3170 The total height of the cab (mm) is 2980 The ground clearance of counterweights (mm) is 1060 Track grounding length (mm)3450 The total length of the track (mm) is 4250 Track plate width (mm)600 The total width of the track (mm) is 2990 Track gauge (mm)2380 Minimum ground clearance (mm) : 470 Rear end rotation radius (mm)2940 Scope of work The maximum excavation radius (mm) of the shutdown surface is 10030 Maximum excavation depth (mm) : 6740 Maximum excavation height (mm)9660 Maximum unloading height (mm) : 6700 The maximum vertical excavation depth (mm) is 5830 The maximum effective excavation depth (mm) is 6560 Width × height (mm) of the bulldozer board without a bulldozer shovel Bulldozer lift or push deep (mm) without a bulldozer
