CAT 336D2

Excavator attachments for heavy construction work A wide range of Cat work tools and attachments are available Hydraulic attachments match the machine's auxiliary hydraulic circuit Quick coupler allows fast attachment changes

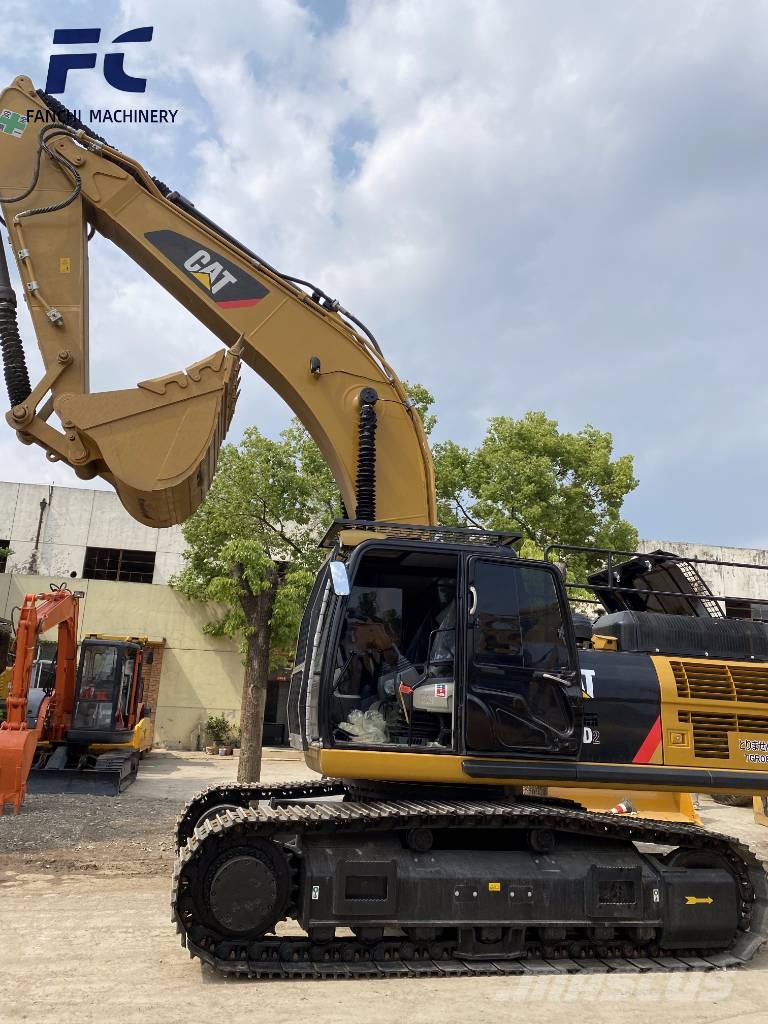

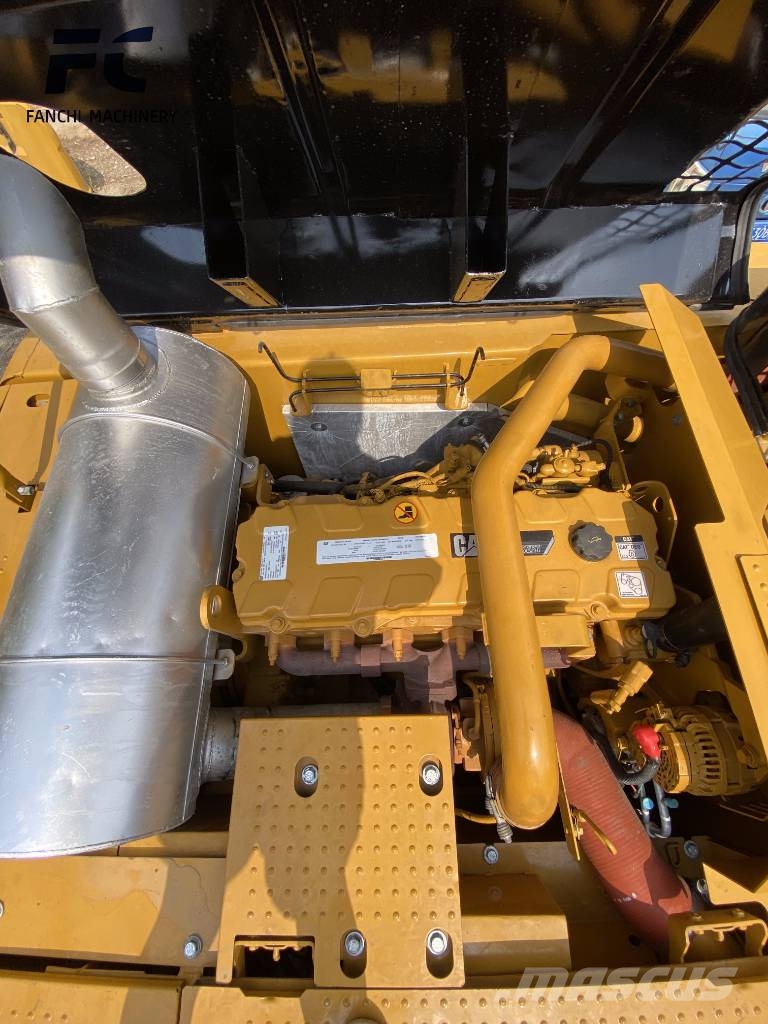

36-ton class crawler hydraulic excavator, refined version of the 336D. Engine: Cat C9 ACERT, 8.8 L, 209 kW / 280 hp gross, 200 kW / 268 hp net; Tier 2 equivalent emissions, works up to 2,300 m altitude Operating weight: 34,489 kg (standard) / 37,086 kg (336D2 L long undercarriage) Hydraulics: 2 × 265 L/min, 35 MPa; cross-sensing for fast cycles; max travel 4.85 km/h, drawbar pull 300.5 kN Configuration: 6.50 m reach boom or 6.18 m mass boom; 5 arm options; heavy-duty buckets about 1.87–2.41 m³ Working ranges: max digging depth 8,090 mm; max ground reach 11,640 mm; max cutting height 10,710 mm 6,018 kg counterweight, sealed grease tracks, pressurized cab, ground-level service points Applications: mining, quarrying, road works, earthworks, trenching, demolition Variants: 336D2, 336D2 L, economy 336D2 GC, hybrid 336D2 XE
