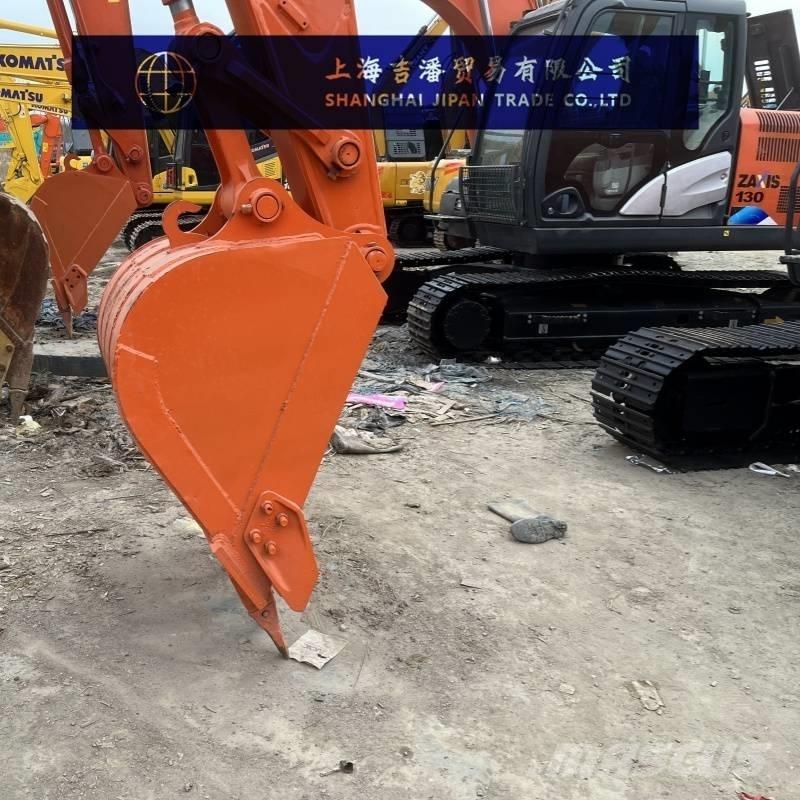

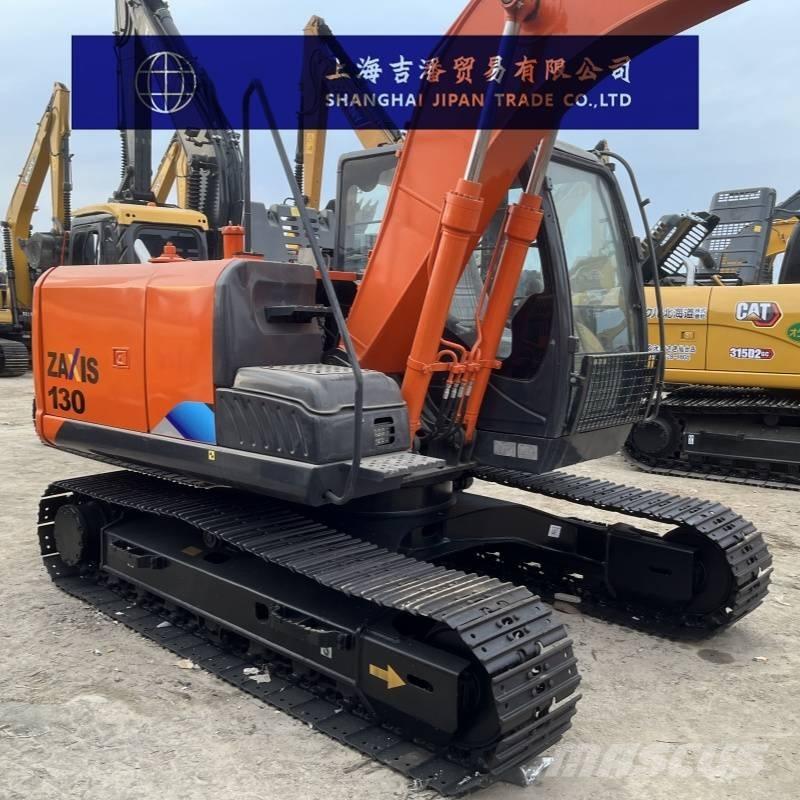

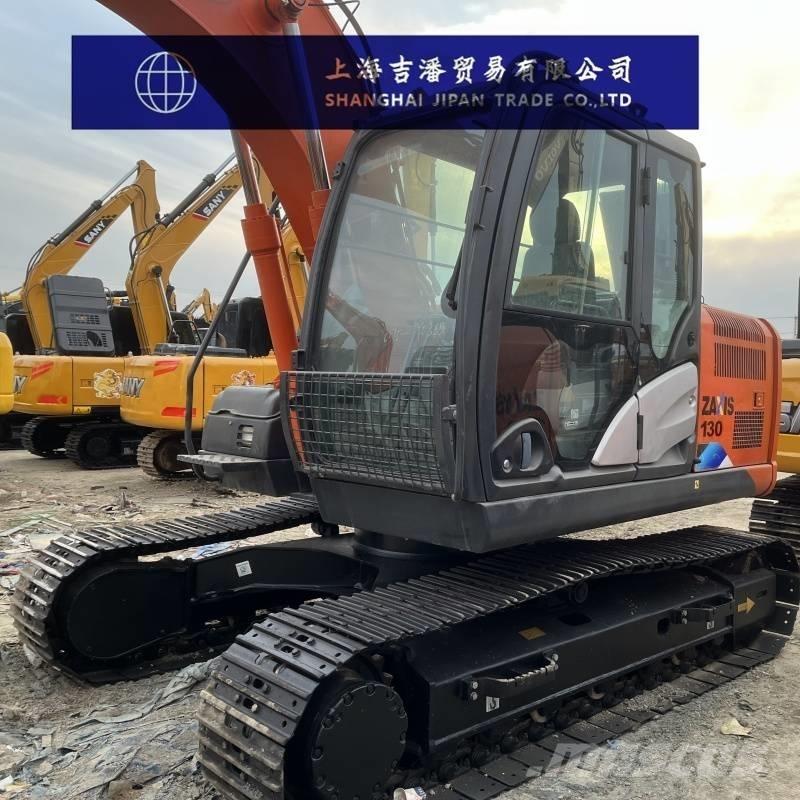

Hitachi ZX 130

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Specification Tonnage (tons)13 The working weight of the entire machine (kg) is 12,500 Bucket capacity (m³):0.52 The length of the boom (mm) is 2520 Performance Rotational speed (rpm):13.3 Walking speed (km/h):3.3-5.5 Climbing ability:70% Ground specific pressure (Kpa)39 Bucket digging force (kN)104 The digging force of the bucket arm (kN) is 69 Maximum traction force (kN)117 Power system Engine model: Isuzu GJ-4JJ1XKSA-03 Rated power (kw/rpm)69/2000 Maximum torque (N.m)354/1600 Displacement (L)2.999 Number of cylinders:4 Cylinder diameter × stroke (mm):95×105 The cooling method is water cooling Working form:4-stroke, water-cooled, electronically controlled direct injection type Hydraulic system The main pump types are two variable axial piston pumps The rotary hydraulic motor type is one swash plate type plunger motor The walking hydraulic motor type consists of two variable swash plate type piston motors Pilot pump type:1 gear pump The maximum flow rate of the main pump (l/min) is 2×117 The pilot pump flow rate (L/min) is 33.6 Pilot oil circuit (MPa)4.0 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)32.3 Boom cylinders - number × cylinder diameter × stroke (mm)2*105*70 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1*115*80 Bucket cylinder - Number × cylinder diameter × stroke (mm)1*100*70 Oil capacity Fuel tank (L)280 Hydraulic oil tank (L)70 Hydraulic system (L)170 Engine oil change volume (L)17 Coolant (L)24 Main body size The total length of transportation (mm) is 7,700 The total transportation width (mm) is 2490 The total transportation height (mm) is 2790 The total height of the cab (mm) is 2790 Track grounding length (mm):2880 Track plate width (mm):500 The total width of the tracks (mm) is 2490 Track gauge (mm)1990 The ground clearance of the counterweight (mm) is 840 Minimum ground clearance (mm)410 The minimum turning radius (mm) of the front working device is 2400 The rear end turning radius (mm) is 2190 Number of idler wheels (single side) (units)1 Number of track plates (single side) (pieces)44 Number of supporting wheels (single side) (units)7 Scope of work Maximum excavation radius (mm):8300 The maximum excavation radius of the shutdown face (mm) is 8170 Maximum excavation depth (mm):5540 Maximum excavation height (mm):8,600 Maximum unloading height (mm):6190 The maximum vertical excavation depth (mm) is 4750
