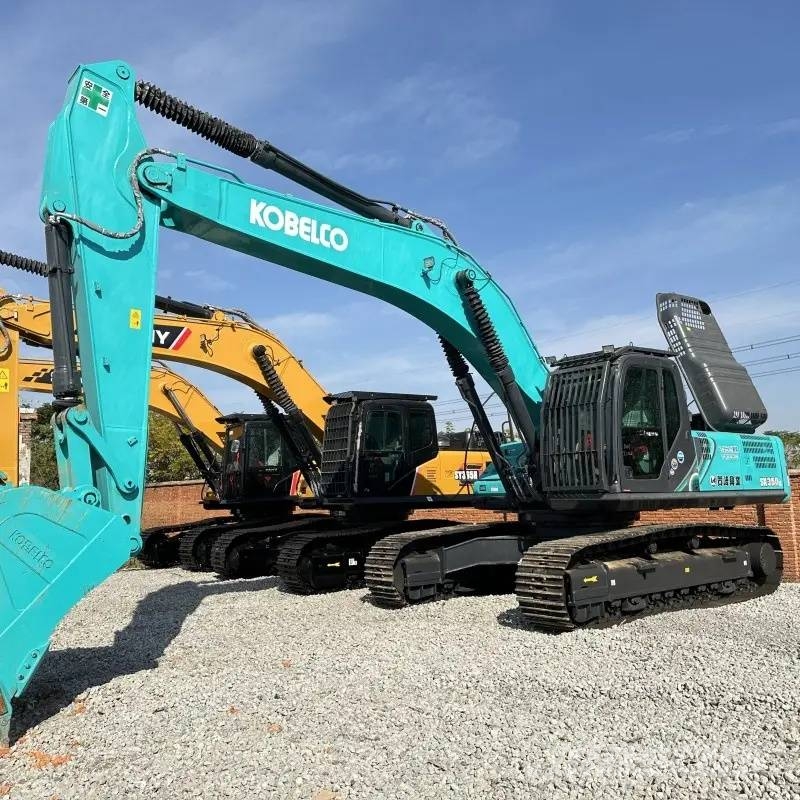

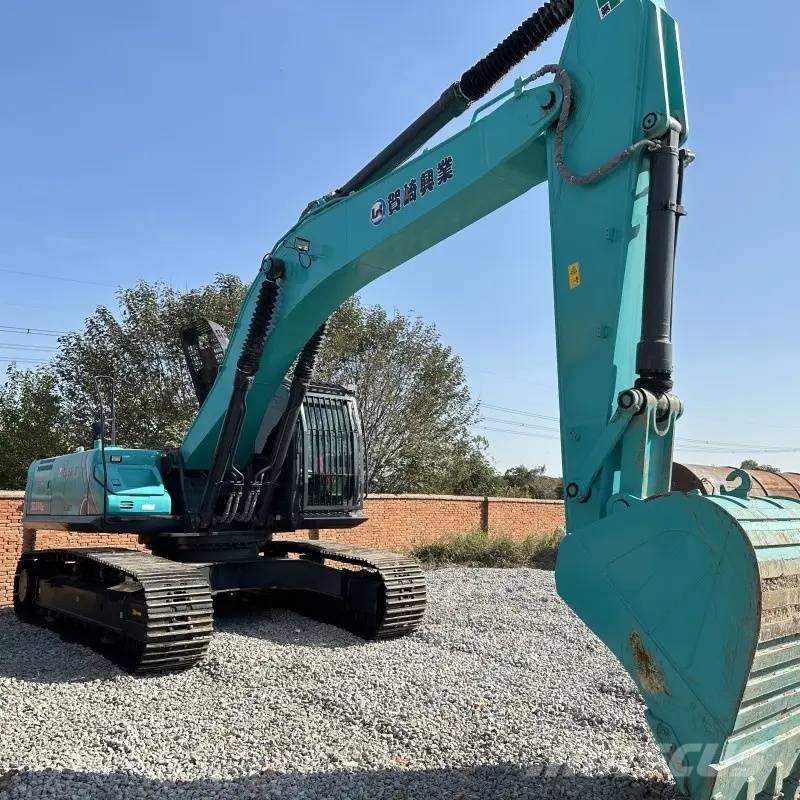

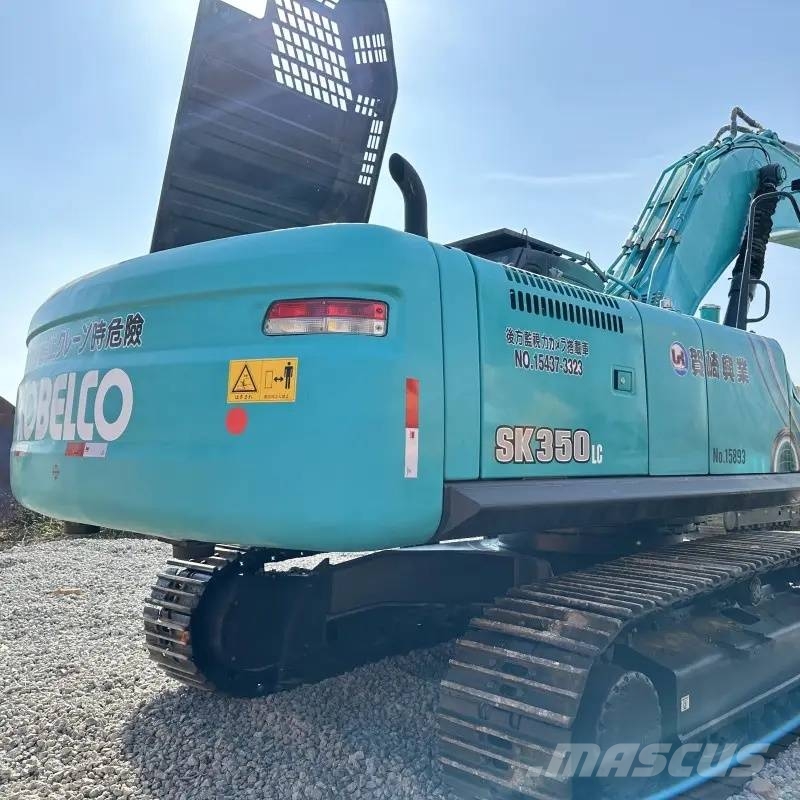

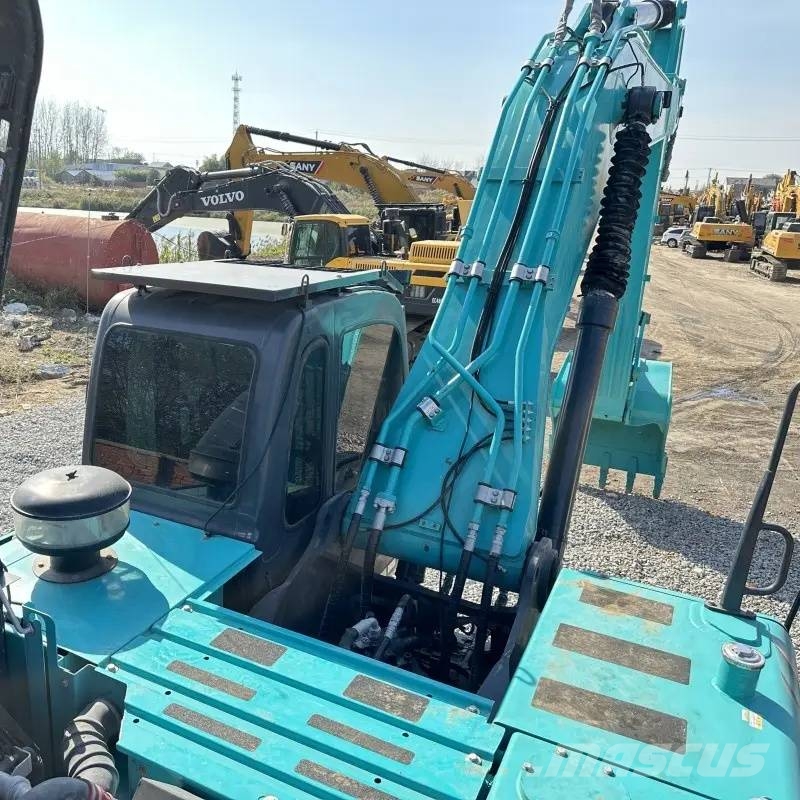

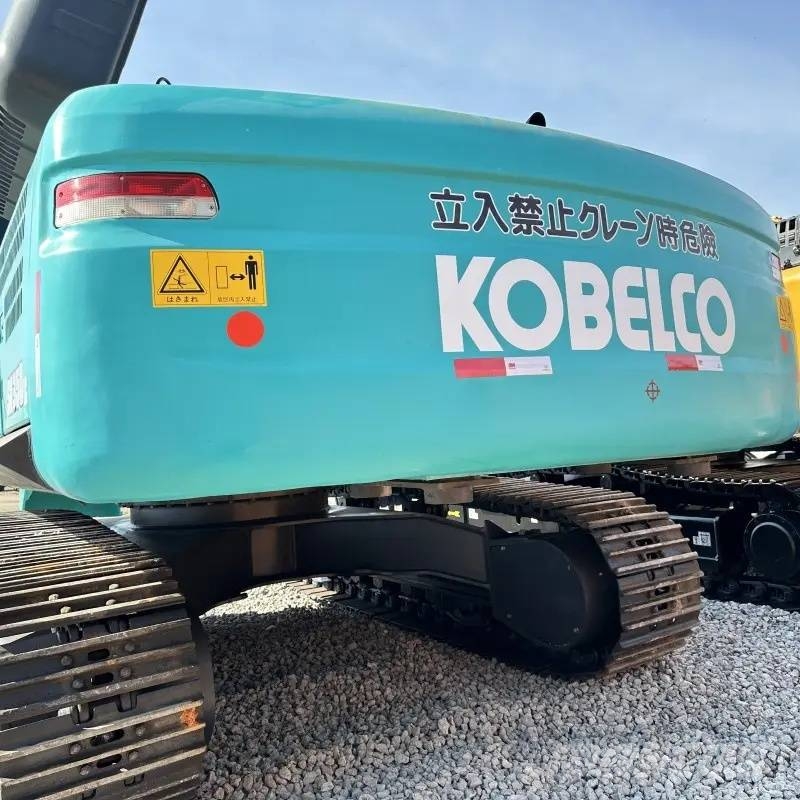

Kobelco SK 350

# KOBELCO SK350LC Crawler Excavator Specifications Model: KOBELCO SK350LC Operating Weight: 36000 kg Bucket Capacity: 1.6 m³ Transport Dimensions (L×W×H): 11290 × 3190 × 3420 mm Track Shoe Width: 600 mm Travel Speed (High/Low): 5.6 / 3.3 km/h Swing Speed: 10 rpm Bucket Digging Force: 223 kN (246 kN with power boost) Arm Digging Force: 164 kN (181 kN with power boost) Max Digging Depth: 7530 mm Max Digging Radius: 11260 mm Max Dumping Height: 7400 mm Max Digging Height: 10510 mm Ground Clearance: 520 mm Ground Pressure: 66 kPa ## Engine Engine Model: HINO J08ETM Rated Net Power: 197 kW / 2100 rpm Gross Power: 209 kW / 2100 rpm Displacement: 7684 cc Cylinders: 6 in-line, turbocharged with intercooler Emission Standard: EU Stage IIIA Fuel Tank Capacity: 580 L ## Hydraulic System Hydraulic Type: Load sensing hydraulic system Main Pump Max Flow: 609 L/min Max Working Pressure: 34.3 MPa
