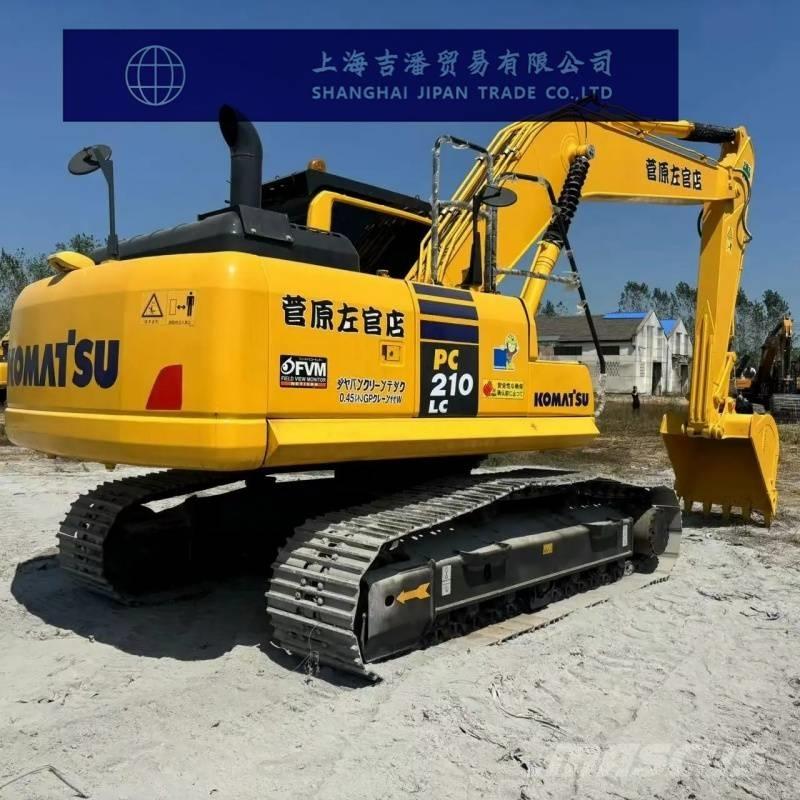

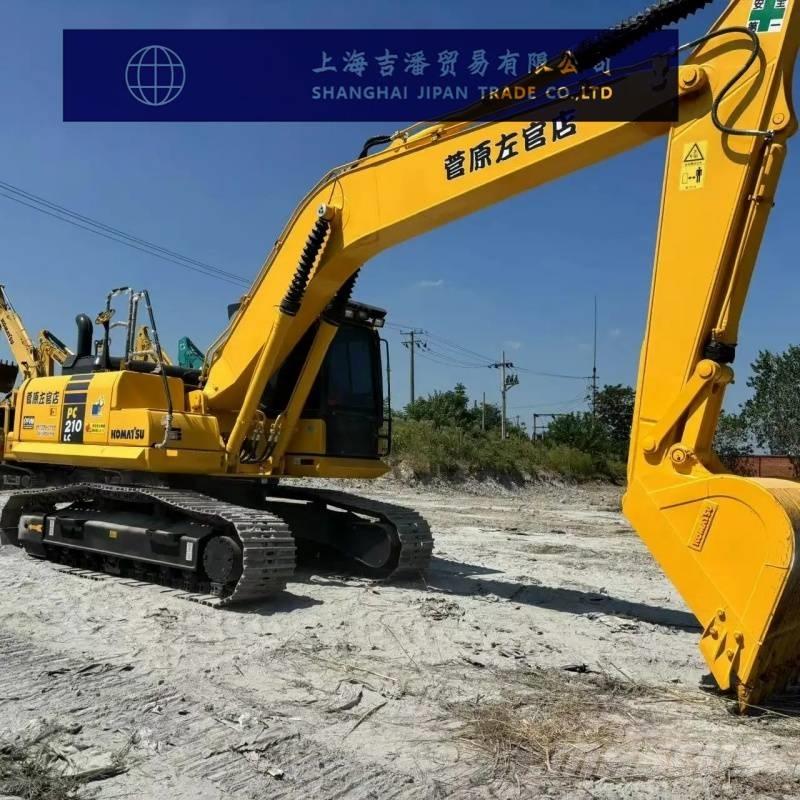

Komatsu PC 210-8

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Komatsu PC210-8M0 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe The working weight of the whole machine (kg) is 20100-20550 Bucket capacity (m³) 0.94 Boom length (mm) 5700 Stick length (mm) 2925 Origin: Changzhou, Jiangsu Province Tonnage (tons) 21 performance Rotation speed (rpm) 12.4 Travel speed (km/h) 5.5/4.1/3.0 Climbing ability (%) 70% (35°) Grounding specific pressure (Kpa) 35.7/46.5 Bucket digging force (kN) 149 Stick digging force (kN) 108 Maximum traction (kN) 178 dynamical system Engine model Komatsu SAA6D107E-1 Rated power (kw/rpm) 103/2000 Displacement (L) 6.69 Number of cylinders (pcs) 6 Bore × stroke (mm) 107×124 Cooling method: Water cooling Working form: water-cooled, 4-stroke, direct injection; Turbocharged, after-cooled Hydraulic system Main pump type variable piston pump Traveling Hydraulic Motor Type Axial Piston Motor ×2 (with Parking Brake) Slewing Hydraulic Motor Type Axial Piston Motor ×1 (with Slewing Holding Brake) The maximum flow rate of the main pump (l/min) is 439 Pilot oil circuit (MPa) 3.2 Working hydraulic oil circuit (Mpa) 37.3 Travel Hydraulic Circuit (Mpa) 37.3 Slewing hydraulic circuit (Mpa) 28.9 Boom cylinder - number × bore × stroke (mm) 2-120× 1334×85 Stick cylinder - number × bore × stroke (mm) 1-135× 1490×95 Bucket cylinder - number × bore × stroke (mm) 1-115× 1120×80 Oil capacity Fuel tank (L) 400 Hydraulic Tank (L) 135 Engine oil change volume (L) 23.1 Coolant (L) 20.4 Body size Total length of transport (mm) 9425 Total width of transport (mm) 2800 Total Transport Height (mm) 2970 (to boom top) Cab total height (mm) 3040 Boarding width (mm) 2710 Track grounding length (mm) 3275 Total track length (mm) 4070 Track shoe width (mm) 600 Total Track Width (mm) 2800 Track gauge (mm) 2200 Minimum ground clearance (mm) 440 Counterweight ground clearance (mm) 1085 The minimum turning radius of the front working device (mm) is 3040 Rear end slewing radius (mm) 2750 Scope of work Maximum digging radius (mm) 9875 The maximum excavation radius of the shutdown surface (mm) is 9700 Maximum digging depth (mm) 6620 Maximum digging height (mm) 10000 Maximum unloading height (mm) 7110 Maximum vertical digging depth (mm) 5980 Maximum effective digging depth (mm) 6370 Boom offset (left/right °) None Boom slewing angle (left/right °) None Width × height of bulldozer plate (mm) None Dozer shovel lifting or pushing depth (mm) None
