Тип машини
Інші крани
Марка / модель
PM 150028SP
Додаткові опції
Новий
Місто
Milford, Massachusetts
Країна
США
Загальна категорія
1
2
3
4
5
Mascus ID
B5431BD7
ДЕТАЛІ
Додаткові інформації
BOOM DETAILS
NEW –

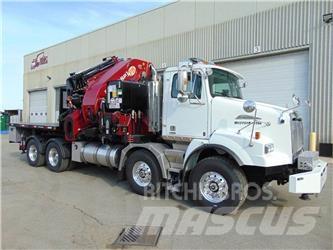

PM 150028SP+J2416 KNUCKLE BOOM
Handles 3,200 lbs ... 106′ Horizontal – 130′ Total Vertical Reach w/Two Extra Pull-Out Extensions
(120′ Horizontal Reach) – Best Capacity in its Class!!
PM Connecting Rods at First Boom and Knuckle
15 Degree Negative Angle at 1st Knuckle, 25 Degree Negative Angle at Jib
Continuous Rotation and Dual Planetary Gear Rotation
Special Extra High Tensile Steel Structure (Unit Weighs Only a Few Hundred Pounds More Than PM 85 Version)
Hydraulic Extra-Wide Main Outriggers at Pedestal – 33′ 6″ Span – Hydraulic Tilting when Retracted
Auxiliary 26′ Spread Stabilizers Installed at Rear Behind Drives, Unfinished at Rear
Hydraulic Oil Cooler, High Pressure Return Filter and Min. 92-Gallon Oil Tank for Boom
Danfoss Proportional Control Valve & SCANRECO Proportional Radio Remote Control
PM Power Tronic Electronic System Allowing Constant Crane Monitoring & Visual Display with 5-Level Stability Control System
SCANRECO Radio Remote Control Includes: 2 Batteries, In-cab Charger, Back-up Cord, Crane Painted PM Blue, Load Chart in ft & lbs
Load Tested & Installed at End of Frame, with Integral Sub-Frame to Meet or Exceed all CMVSS Standards
DECK DETAILS
NEW –

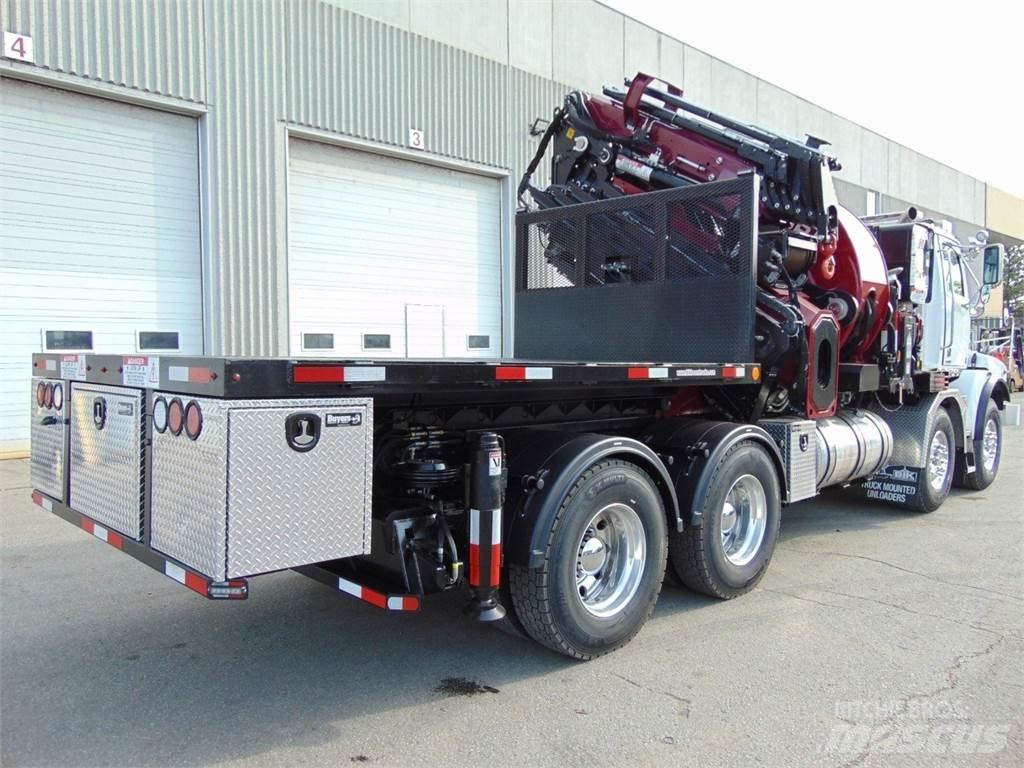

15′ X 102″ REMOVABLE STEEL CHECKER PLATE FLAT DECK
Also Included Are:
5th Wheel Installed Over Tandem with Bracket Receiver Hook for Removable Deck, Program Remote Control to Include Engine Start/Stop and Variable Engine RPM, Auxiliary Extra-Wide Out and Down Stabilizers Mounted at Rear Under Frame, 24″ Aluminum Tool Box Under Deck, Dual Front Bumper Stabilizer on Integral 24″ Front Frame Extension, 6 PVC Stabilizers Pads with Holders
Optional Features Available:
Add Winch on Main Boom with Ability to Lift from Jib and Main Boom
Removable 4-Ton Rated Hydraulic Hook Rotator Installed at End of Boom
Aluminum Man Basket
TRUCK DETAILS
NEW –
WESTERN STAR 4800 SLOPED NOSE T/A STEER – T/A REAR TRACTOR – 4 AXLE
DDC-13 Diesel – 500 hp with Jake
Eaton Ultrashift Automated 18 Speed Transmission
20,000 lb Fronts with 425/65R22.5 Tires
20,000 lb Self-Steer Lift Axle Ahead of T/A Under Boom
50,000 lb Rears on Air Ride Suspension
Double Frame, 270″ wb
Polished ALCOA Aluminum Wheels – Front and Outer Rear
Chrome Grill & Bumper
Single 80-Gallon Aluminum Fuel Tank
Loaded with Options Including:

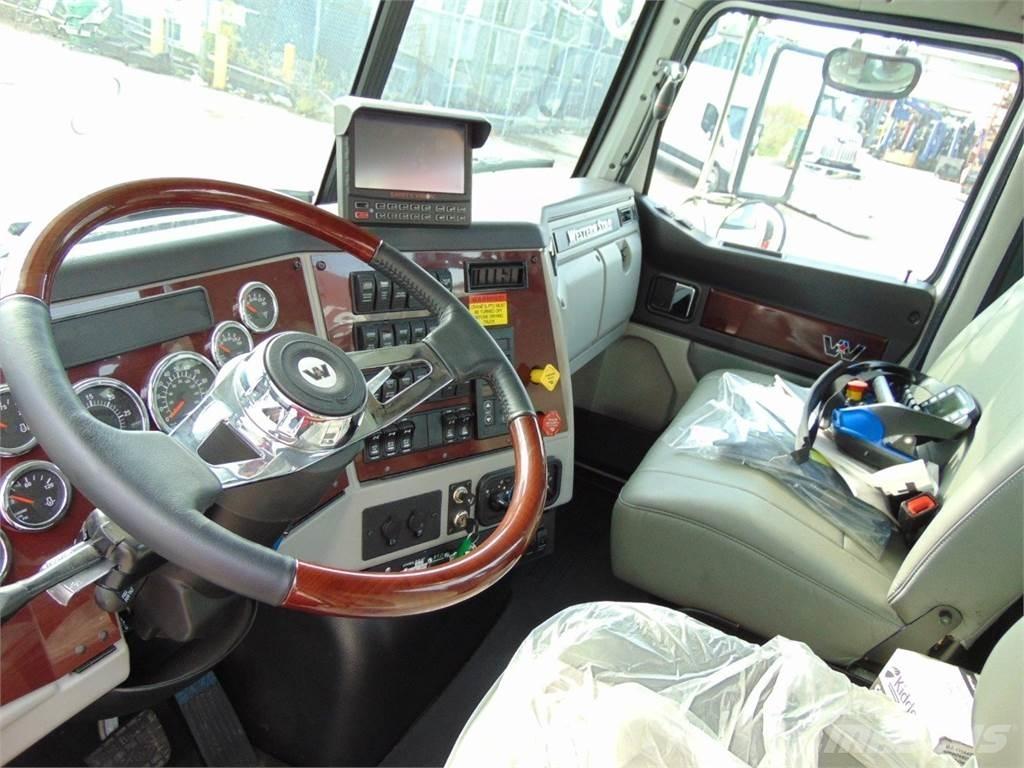

A/C, Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, Fixed Passenger Seat, Cruise, Heated Mirrors, Exterior SS Sun Visor, 4 Wheel Lock-ups, Power Window, Power Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, 5th Wheel on at T/A w/Ramps, etc…
Показати більше
