Spomac 6203

Name: Spomac 6203
Brand: Spomac
SKU: 86B650E7
Availability: InStock

Ціна без врахування ПДВ

Договірна

Вибране

Поділитися

Зберегти пошук

Друк

ІНФОРМАЦІЯ

Тип машини

Карусельні мийні машини

Марка / модель

Spomac 6203

Рік випуску

2024

Місто

Camrose, Alberta

Країна

Канада

Mascus ID

86B650E7

ДЕТАЛІ

Країна виробництва

Канада

Додаткові інформації

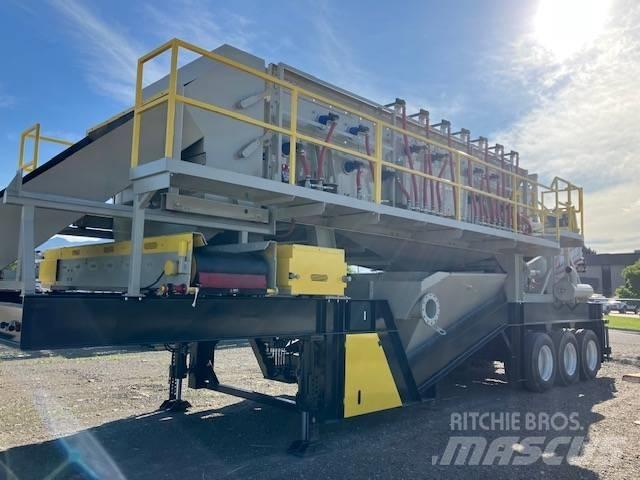

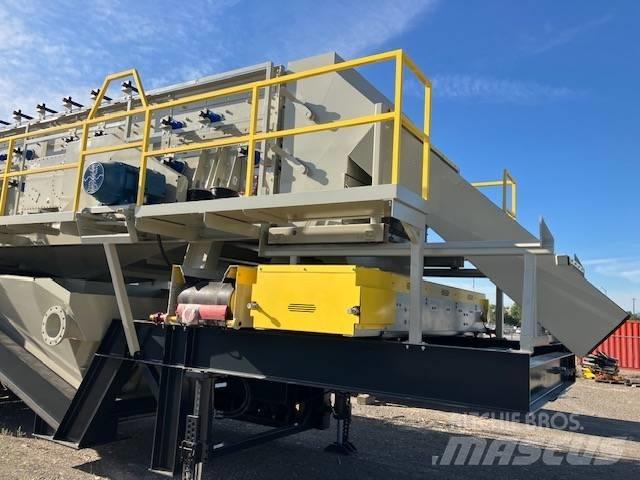

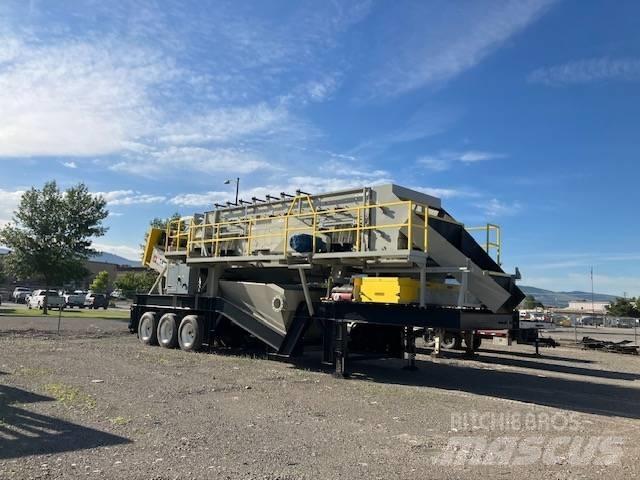

Horizontal Screen • 6’ x 20’ three deck JCI screen with base frame • 50 HP 1200 RPM TEFC Motor Fine Material Washer • McLanahan Twin Sand Screw - 36” x 25’ Three Axle Carrier • Drop center frame • 16” x 36# WF Beam • H-9700 triple axel hutch suspension • 22,500 standard axles, 11:00R x 24.5 tires • Air brakes, lights and mud flaps Hoppers, Chutes, Walkways and Mount • Rollaway discharge chute for screen access • Top discharge chute belting for rock control • 12” x 30# WF screen and hopper supports • Under screen collection hopper with wash down square tube each end • 3/16 discharge chutes • 1/4” AR lined discharge chutes with 4 flop gates per deck • AR lined flop gates with external handles to open or close • 24” 3/16 diamond plate walkways on both sides of screen • 48” wide 3/16 diamond plate back platform • 4” toe boards and 1 ½ square tube 42” high handrails with access ladders • Safety swing gates at access points Blending flop gates for blending first to second and second to third deck products 18 Spray Bar Wash System • Full length manifold with inlet pipe and flange mounted on screen frame • Individual brass ball valves for adjustable water flow • Behringer HD pipe clamps on spray bars • Sch. 80 1 ½ pipe drilled and tapped for brass spray nozzles • Spomac 12” x 48” pre-water strainer with washable screen • Pre-wash box lined with side spray bars and easy fold down for shipping • Bolt-on belting on three sides of pre-wash box, below spray bars 4 Heavy Duty Spomac Hydraulic Legs • 8 HP Honda hydraulic power unit with four bank valve manifold • 70,000 lb capacity hydraulic legs with heavy duty foot pads 30” x 12’ Cartridge Conveyor for Second Deck • Motorized head pulley 7 ½ HP 12.64 model 320M; vulcanized lagged pulley, with mounting brackets • Channel mount troughing idler 20 degree CEMA “B” 4” steel • Return idler CEMA “B” 4” steel roller, one center mount • 10” self-cleaning wing tail pulley, Dodge SC bearings, 1 15/16 shaft • Legg 2 ply 250 PIW 3/16 top x 1/16 bottom covers, vulcanized splice • Full length formed skirt board • Wide slot bearing take-up • 30” Gordon belt wiper 24” x 12’ Cartridge Conveyor for Third Deck • Motorized head pulley 7 ½ HP 12.64 model 320M; vulcanized lagged pulley, with mounting brackets • Channel mount troughing idler 20 degree CEMA “B” 4” steel • Return idler CEMA “B” 4” steel roller, one center mount • 10” self-cleaning wing tail pulley, Dodge SC bearings, 1 15/16 shaft • Legg 2 ply 250 PIW 3/16 top x 1/16 bottom covers, vulcanized splice • Full length formed skirt board • Wide slot bearing take-up • 24” Gordon belt wiper Electrical Switch Gear for Plant includes wiring for: • NEMA 4 enclosure with start and stop buttons on door • Warning horn • Two 10 HP for twin sand screw • One 50 HP for screen • Two 7 ½ HP for cross conveyors • Four spare 20 HP for outside conveyors • Mounted on side of chassis stand Primer and PaintПоказати більше

DSW Equipment (2023) Ltd.

3750 43 Avenue T4V 3S8 Camrose Alberta Канада
