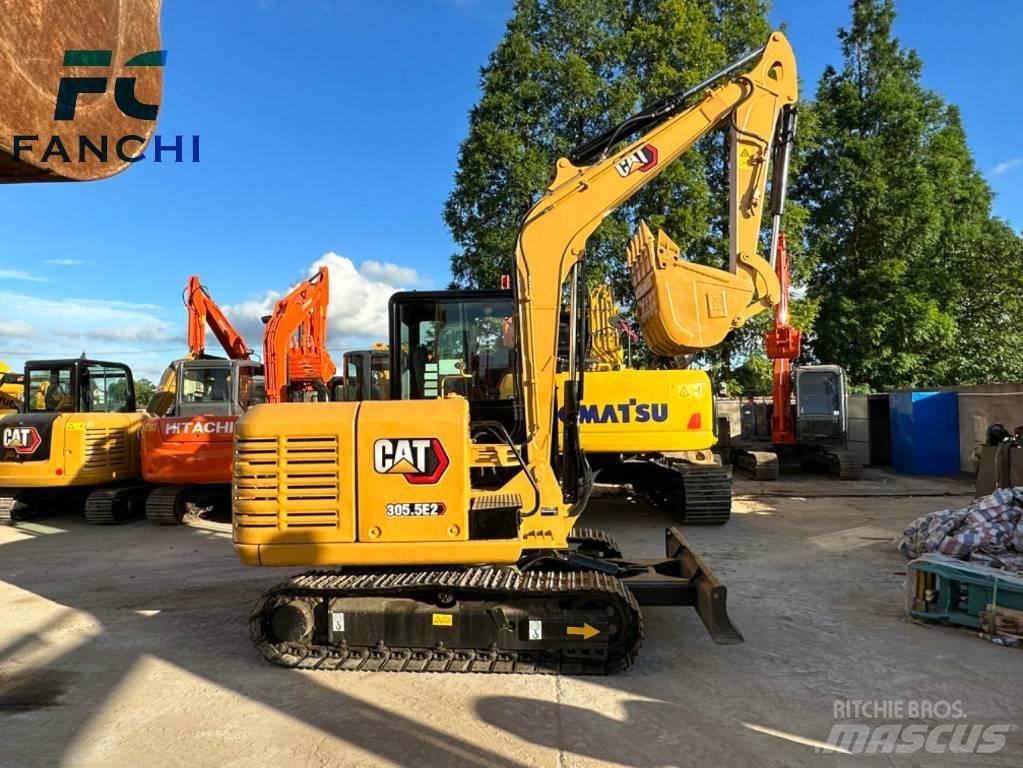

CAT CAT305.5E2

All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.

The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.
