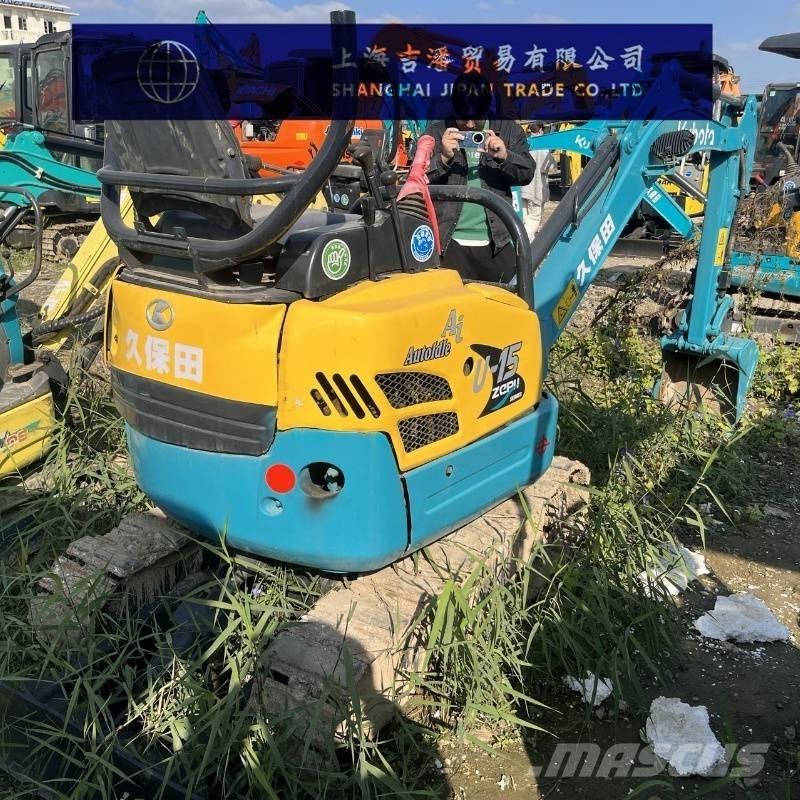

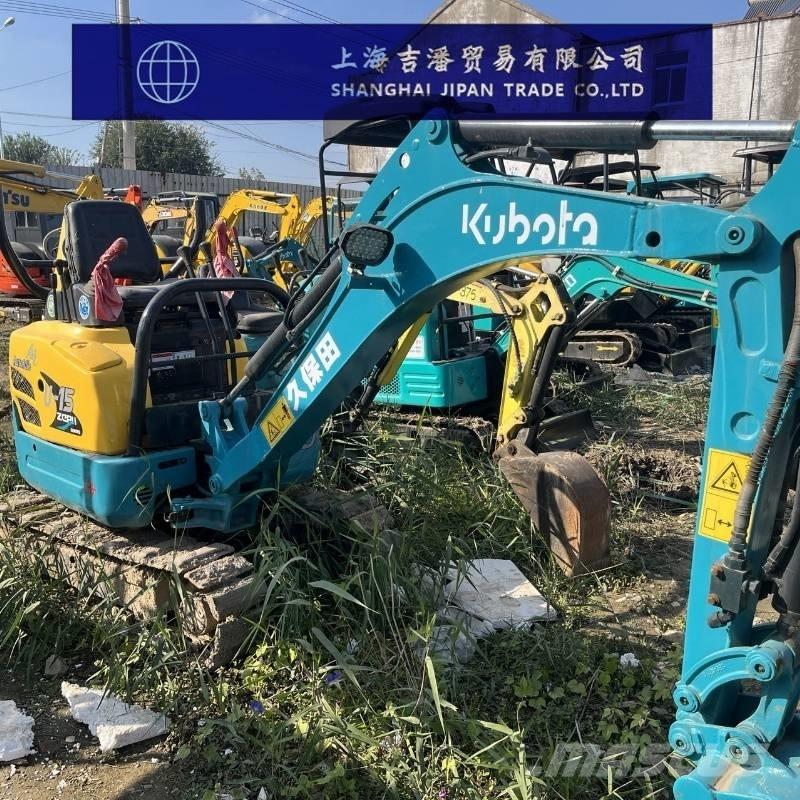

Kubota U 15

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Item Specification Bucket Capacity 0.04 m³ Standard Bucket Width (with/without side teeth) 450/400 mm Operating Weight 1570 kg Overall Dimensions (during transportation) - Total Length 3575 mm Overall Dimensions (during transportation) - Total Height 2250 mm Overall Dimensions (during transportation) - Total Width 990/1240 mm Minimum Ground Clearance 145 mm Engine Model Kubota Water-Cooled 3-Cylinder D782-E2-BH-7 Total Displacement 0.778 L (778 cc) Rated Output Power 9.6 kW (13 HP) / 2300 rpm Maximum Digging Height 3540 mm Maximum Dumping Height 2440 mm Maximum Digging Depth 2310 mm Maximum Vertical Digging Depth 1910 mm Maximum Digging Radius 3900 mm Boom Offset (Right/Left) 510/385 mm Minimum Front Swing Radius (when swinging) 1425 (1210) mm Minimum Rear Swing Radius 620 mm Maximum Digging Force (Bucket) 15.2 kN (1545 kgf) Track Type Steel or Rubber Tracks (optional) Track Width 230 mm Total Track Length 1585 mm Wheelbase 1230 mm Track Center Distance 760/1010 mm Travel Speed (Low/High) 2.2/4.3 km/h Climbing Ability 30 degrees (58%) Swing Speed 8.7 rpm Dozer Blade (Width) 990/1240 mm Dozer Blade (Height) 265 mm Dozer Blade Lifting Distance (Above/Below Ground Level) 260/180 mm Hydraulic Pump Type Variable Displacement Pump (2×16.6 L/min) + Gear Pump (10.4 L/min) + Pilot Gear Pump (6.2 L/min) Swing Motor Type Orbital Motor Travel Motor Type 2-Speed Piston Motor Fuel Tank Capacity 18 L
