Sollroc Self Drilling Grouting Anchor Bolt

Ціна без врахування ПДВ

Compnay LOGO
Images2
Sollroc Self Drilling Grouting Anchor Bolt Комплектуючі і запасні частини для бурових установок
Sollroc Self Drilling Grouting Anchor Bolt Комплектуючі і запасні частини для бурових установок
FavoriteВибране
shareПоділитися
Save searchЗберегти пошук
Друк

ІНФОРМАЦІЯ

Тип машини
Комплектуючі і запасні частини для бурових установок
Марка / модель
Sollroc Self Drilling Grouting Anchor Bolt
Рік випуску
2019
Стан
Новий
Місто
ChangSha
Країна
Китай
Mascus ID
7047A429

ЦІНА

Вибір валюти

ДЕТАЛІ

Країна виробництва
Китай
Умови доставки
FOB, CFR, CIF, EXW
Додаткові інформації

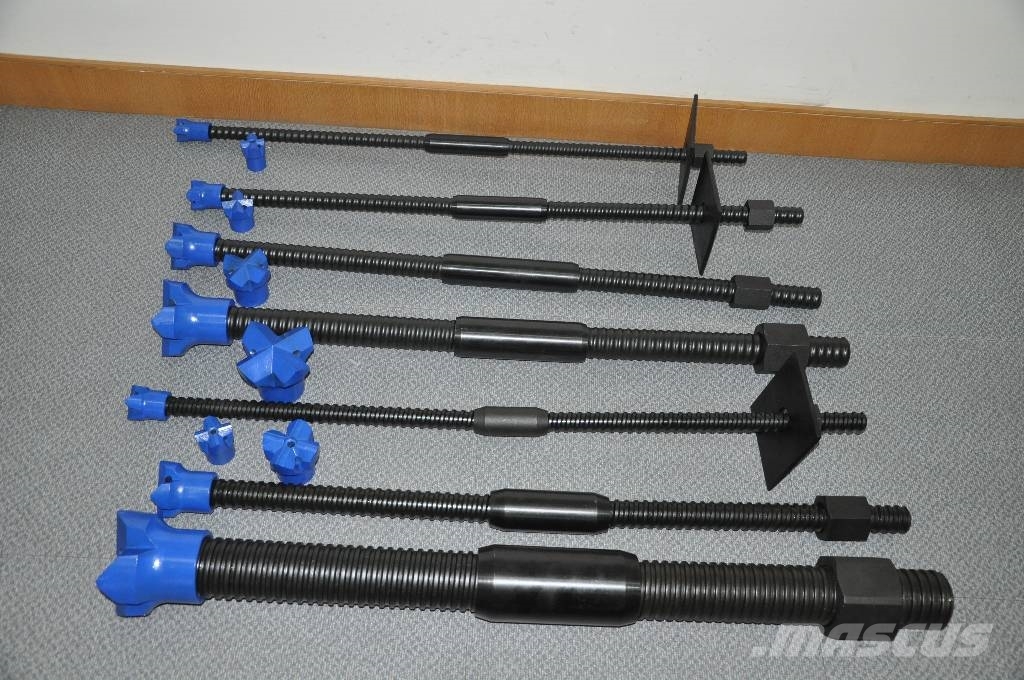

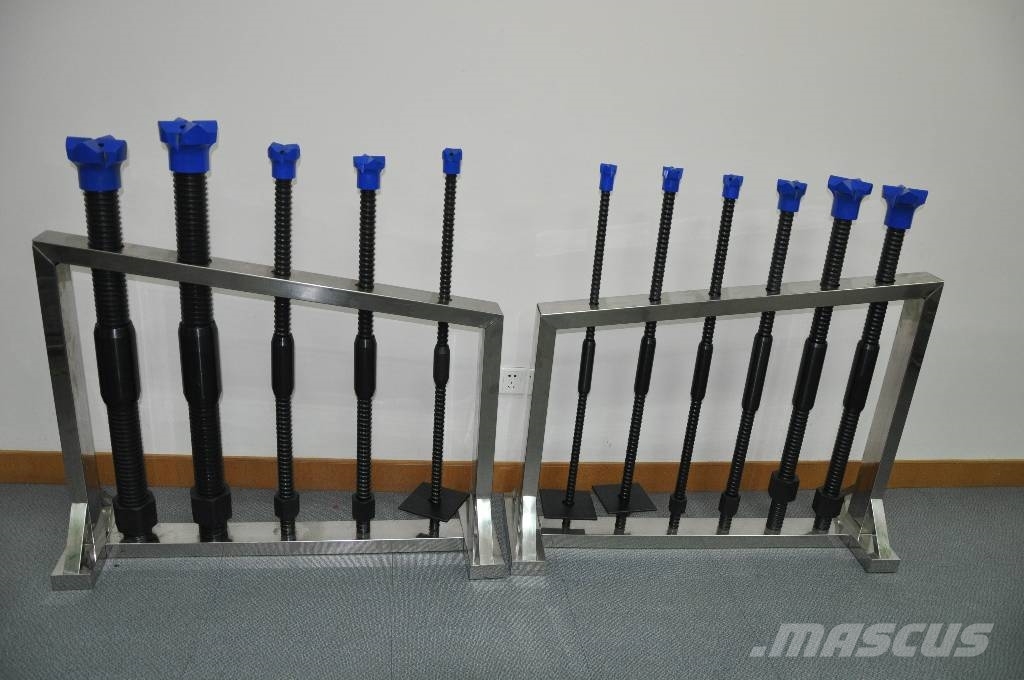

SOLLROC self-drilling anchor bolts have a wide range of application fields including: - Reinforcement of poor rock/soil conditions in tunnels, - Stabilization of tunnel faces - Tunnel root piling and - Tunnel entrances. Self drilling anchor bolt is extensive applied in all kinds of constructions, such as railway system, metro project and infrastructure development. As an efficient anchoring method, it’s also widely applied to pre-support project, radial support project, slope stabilization, foundation support project, soil nail wall, back pull anchor rod retaining wall and other rock supporting work. R32N Self drilling grouting bolts 1-. Anchor bolt It has the international standard wave-shape connecting a thread and is very easy to be installed with bit, coupling and fasten a nut. It can also be cut or connected very freely. 2-. Plate: To bear higher stress of surrounding rock. 3-. Nut To transmit the stress of surrounding rock to a plate. 4-. Coupling It can realize the purpose of elongating to the designed depth while drilling. 5-. Bit It has strong ability of penetrating, so the anchor can pass through various rocks with it. Item Specifications R32N bolt Dia OD/ID:32/18.5 Cross dimension:396mm2 Max tensile load(KW):280kN Yield load(KN):230kN Cross bit all steel(EX) R32/D51/L56 EX R32/D76/L80 EX Cross bit with carbide(EXX) R32/D51/L56 EXX R32/D76/L85 EXX button bit(ESS) R32/D51/L60 ESS R32/D76/L82 ESS Clay bit (EW) R32/D76/H71 EW bit adaptor R32/R38*L50 Coupling R32/Φ42*L160 Nut R32/SW46*L45 Plate R32N 200*200*8*Φ35 200*200*10*Φ35 Features: 1-. Self drilling system eliminates the requirement for a cased borehole. 2-. Installation with simultaneous drilling and grouting possible. 3-. Easy installation in all directions, also upwards. 4-. Reliable, efficient and convenient, this makes high piling output possible. 5-. Anchor bars can be cut and lengthened according to your demands. It applies to narrow space.Показати більше

Changsha SOLLROC Engineering Equipments Co., Ltd

No.55 Jiucaiyuan, Wenyi road, Furong District 410001 Changsha Hunan 湖南 Китай
